Bilinear Spline Warping

1 개요

Bilinear Spline Warping은 설정된 제어 점들을 이용하여 Bilinear spline interpolation 방식을 통해 이미지를 변환하는 알고리즘입니다.

2 알고리즘 상세 설명

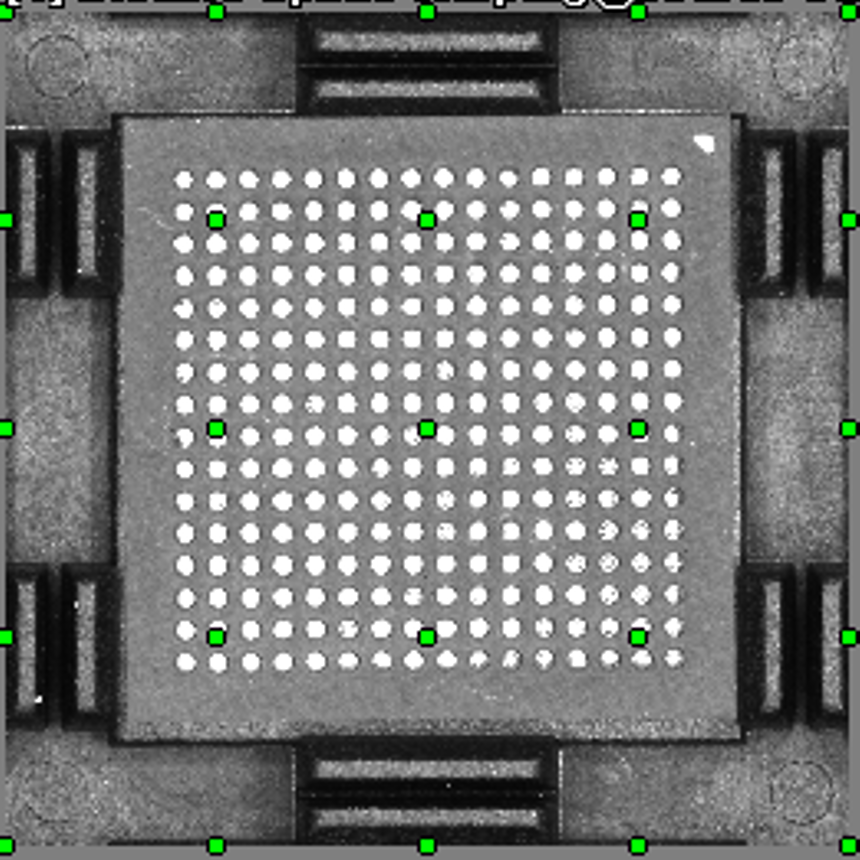

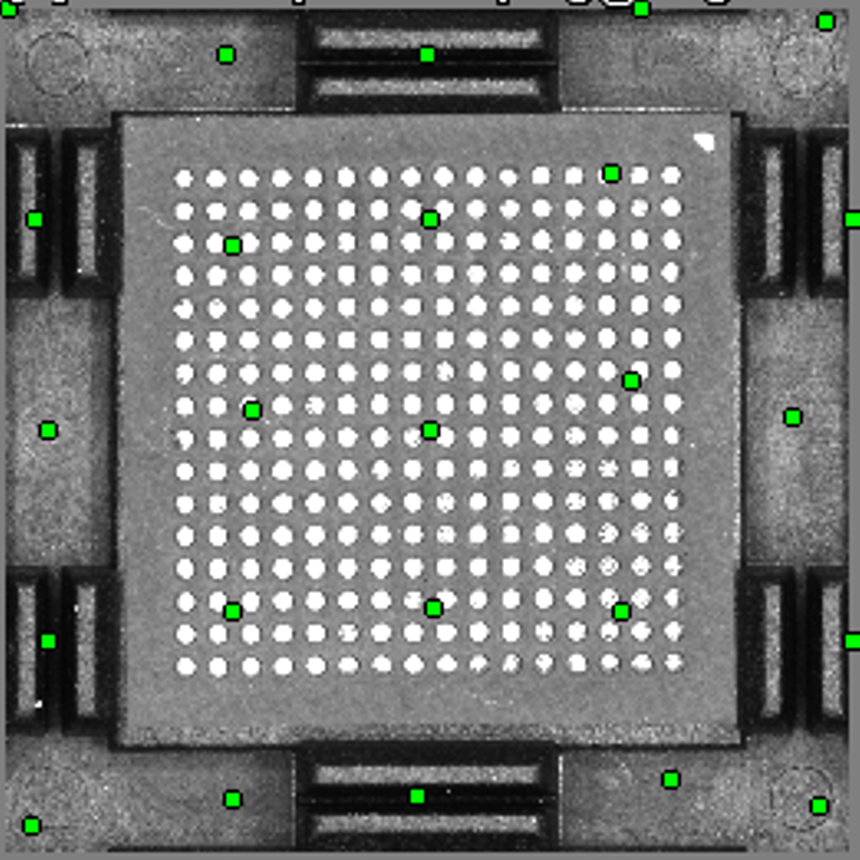

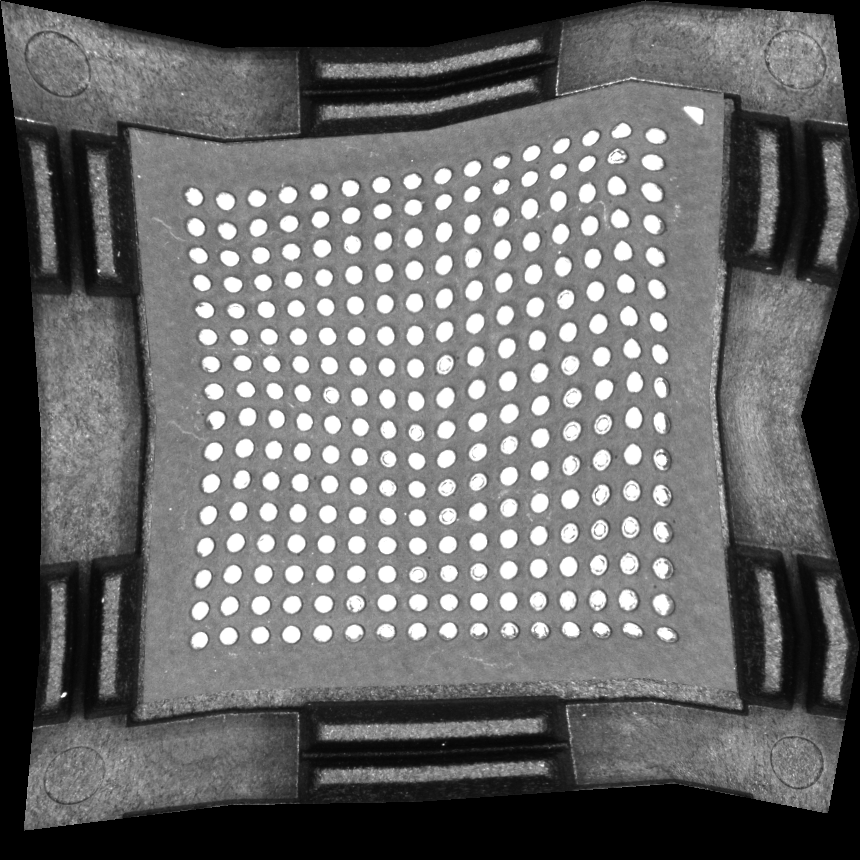

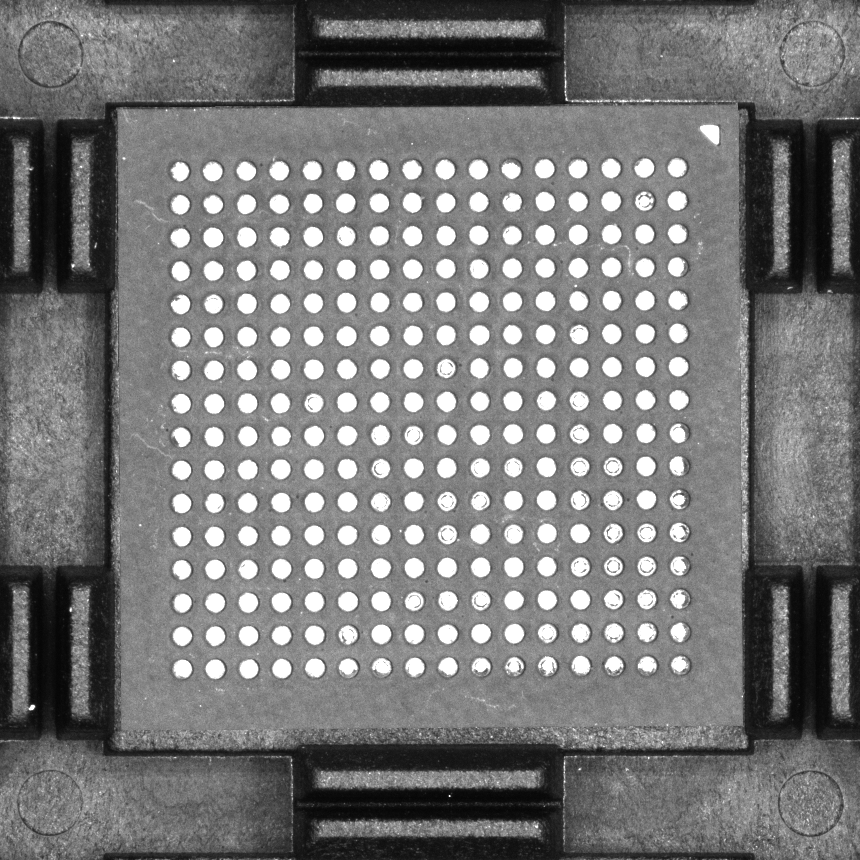

Source Source points Dest points Result
Source Result Result Result
Fig. 알고리즘 수행 결과

3 파라미터 설정 및 사용 방법

  1. API

    SetInterpolationMethod(EInterpolationMethod eMethod = EInterpolationMethod_Bilinear)
    • Bilinear Spline Warping 연산 시 보간 방법을 설정합니다. eMethod - Default Value : EInterpolationMethod_Bilinear
    SetCalibrationPointArray(Foundation::CFLPointArray& flpaSource, Foundation::CFLPointArray& flpaDestination)
    • Source및 Destination의 캘리브레이션 포인트를 설정 합니다.
    Calibrate()
    • 설정된 Source Points Array와 Destination Points Array로 Calibrate를 수행합니다.
    Load(Base::CFLString<wchar_t> wstrPath)
    • 저장된 캘리브레이션 파일을 로드합니다.
    Save(Base::CFLString<wchar_t> wstrPath)
    • 캘리브레이션 파일을 저장합니다.

  2. 예제 코드

    CBilinearSplineWarping BilinearSplineWarping;
// LearnImage 설정
CFLImage fliLearnImage;

if(fliLearnImage.Load(L"../../ExampleImages/BilinearSplineWarping/chess.flif").IsFail())
	break;

BilinearSplineWarping.SetSourceImage(fliLearnImage);
// Source Calibration Points 생성 2 x2
CFLPointArray flpaSource;
flpaSource.PushBack(CFLPoint<double>());

flpaSource.PushBack(CFLPoint<double>(300.000000, 0.000000));

flpaSource.PushBack(CFLPoint<double>(0.000000, 420.000000));

flpaSource.PushBack(CFLPoint<double>(300.000000, 420.000000));

// Destination Calibration Points 생성 2 x2
CFLPointArray flpaDestination;
flpaDestination.PushBack(CFLPoint<double>(43.003413, 34.402730));

flpaDestination.PushBack(CFLPoint<double>(277.064846, 28.668942));

flpaDestination.PushBack(CFLPoint<double>(24.368601, 398.498294));

flpaDestination.PushBack(CFLPoint<double>(232.627986, 362.662116));

/// Source & Destination Calibration Point Array 설정
BilinearSplineWarping.SetCalibrationPointArray(flpaSource, flpaDestination);
// Calibration Points 연장 길이 값 설정
// Calibrate 수행
if(BilinearSplineWarping.Calibrate().IsFail())
	break;
// Calibration 정보 저장
if(BilinearSplineWarping.Save(L"../../ExampleImages/BilinearSplineWarping/learnCalibration").IsFail())
	break;
// Calibration 정보 불러오기
if(BilinearSplineWarping.Load(L"../../ExampleImages/BilinearSplineWarping/learnCalibration").IsFail())
	break;
// 소스 이미지 불러오기
CFLImage fliSourceImage;
if(fliSourceImage.Load(L"../../ExampleImages/BilinearSplineWarping/chess.flif").IsFail())
	break;
BilinearSplineWarping.SetSourceImage(fliSourceImage);
// 결과 이미지 설정
CFLImage fliDestinationImage;
BilinearSplineWarping.SetDestinationImage(fliDestinationImage);
// 알고리즘 수행
if(BilinearSplineWarping.Execute().IsFail())
	break;
// 결과 이미지 저장
if(fliDestinationImage.Save(L"../../ExampleImages/BilinearSplineWarping/Result.flif").IsFail())
	break;

    CBilinearSplineWarping BilinearSplineWarping = new CBilinearSplineWarping();

// LearnImage 설정
CFLImage fliLearnImage = new CFLImage();

if(fliLearnImage.Load("../../ExampleImages/BilinearSplineWarping/chess.flif").IsFail())
    break;

BilinearSplineWarping.SetSourceImage(ref fliLearnImage);
// Source Calibration Points 생성 2 x2
CFLPointArray flpaSource = new CFLPointArray();
flpaSource.PushBack(new CFLPoint<double>());

flpaSource.PushBack(new CFLPoint<double>(300.000000, 0.000000));

flpaSource.PushBack(new CFLPoint<double>(0.000000, 420.000000));

flpaSource.PushBack(new CFLPoint<double>(300.000000, 420.000000));

// Destination Calibration Points 생성 2 x2
CFLPointArray flpaDestination = new CFLPointArray();
flpaDestination.PushBack(new CFLPoint<double>(43.003413, 34.402730));

flpaDestination.PushBack(new CFLPoint<double>(277.064846, 28.668942));

flpaDestination.PushBack(new CFLPoint<double>(24.368601, 398.498294));

flpaDestination.PushBack(new CFLPoint<double>(232.627986, 362.662116));

/// Source & Destination Calibration Point Array 설정
BilinearSplineWarping.SetCalibrationPointArray(flpaSource, flpaDestination);
// Calibration Points 연장 길이 값 설정
// Calibrate 수행
if(BilinearSplineWarping.Calibrate().IsFail())
    break;
// Calibration 정보 저장
if(BilinearSplineWarping.Save("../../ExampleImages/BilinearSplineWarping/learnCalibration").IsFail())
    break;
// Calibration 정보 불러오기
if(BilinearSplineWarping.Load("../../ExampleImages/BilinearSplineWarping/learnCalibration").IsFail())
    break;
// 소스 이미지 불러오기
CFLImage fliSourceImage = new CFLImage();
if(fliSourceImage.Load("../../ExampleImages/BilinearSplineWarping/chess.flif").IsFail())
    break;
BilinearSplineWarping.SetSourceImage(ref fliSourceImage);
// 결과 이미지 설정
CFLImage fliDestinationImage = new CFLImage();
BilinearSplineWarping.SetDestinationImage(ref fliDestinationImage);
// 알고리즘 수행
if(BilinearSplineWarping.Execute().IsFail())
    break;
// 결과 이미지 저장
if(fliDestinationImage.Save("../../ExampleImages/BilinearSplineWarping/Result.flif").IsFail())
    break;

    def main():
    bilinearSplineWarping = CBilinearSplineWarping()

    # LearnImage 설정
    fliLearnImage = CFLImage()

    if (res := fliLearnImage.Load('../../ExampleImages/BilinearSplineWarping/chess.flif')).IsFail():
        ErrorPrint(res, 'Failed to load the image file.')
        return

    bilinearSplineWarping.SetSourceImage(fliLearnImage)
    # Source Calibration Points 생성 2 x2
    flpaSource = CFLPointArray()
    flpaSource.PushBack(CFLPoint[Double]())

    flpaSource.PushBack(CFLPoint[Double](300.000000, 0.000000))

    flpaSource.PushBack(CFLPoint[Double](0.000000, 420.000000))

    flpaSource.PushBack(CFLPoint[Double](300.000000, 420.000000))

    # Destination Calibration Points 생성 2 x2
    flpaDestination = CFLPointArray()
    flpaDestination.PushBack(CFLPoint[Double](43.003413, 34.402730))

    flpaDestination.PushBack(CFLPoint[Double](277.064846, 28.668942))

    flpaDestination.PushBack(CFLPoint[Double](24.368601, 398.498294))

    flpaDestination.PushBack(CFLPoint[Double](232.627986, 362.662116))

    #/ Source & Destination Calibration Point Array 설정
    bilinearSplineWarping.SetCalibrationPointArray(flpaSource, flpaDestination)
    # Calibrate 수행
    if (res := bilinearSplineWarping.Calibrate()).IsFail():
        ErrorPrint(res, 'Failed to calibrate.')
        return

    # Calibration 정보 저장
    if (res := bilinearSplineWarping.Save("../../ExampleImages/BilinearSplineWarping/learnCalibration")).IsFail():
        ErrorPrint(res, 'Failed to save.')
        return

    # Calibration 정보 불러오기
    if (res := bilinearSplineWarping.Load("../../ExampleImages/BilinearSplineWarping/learnCalibration")).IsFail():
        ErrorPrint(res, 'Failed to load.')
        return

    # 소스 이미지 불러오기
    fliSourceImage = CFLImage()

    if (res := fliSourceImage.Load('../../ExampleImages/BilinearSplineWarping/chess.flif')).IsFail():
        ErrorPrint(res, 'Failed to load the image file.')
        return

    bilinearSplineWarping.SetSourceImage(fliSourceImage)
    # 결과 이미지 설정
    fliDestinationImage = CFLImage()
    bilinearSplineWarping.SetDestinationImage(fliDestinationImage)
    # 알고리즘 수행
    if (res := bilinearSplineWarping.Execute()).IsFail():
        ErrorPrint(res, 'Failed to execute.')
        return

    # 결과 이미지 저장
    if (res := fliDestinationImage.Save("../../ExampleImages/BilinearSplineWarping/Result.flif")).IsFail():
        ErrorPrint(res, 'Failed to save the image file.')
        return

def ErrorPrint(res, str):
    if len(str) > 1:
        print(str)

    print(f'Error code : {res.GetResultCode()}\nError name : {res.GetString()}')
