Logical Xor

1 개요

이미지를 스칼라 또는 다른 이미지와 Logical Xor 연산을 수행하는 알고리즘입니다.

2 알고리즘 상세 설명

이미지를 스칼라 또는 다른 이미지와 각 Channel 마다 Logical Xor 연산을 수행합니다.

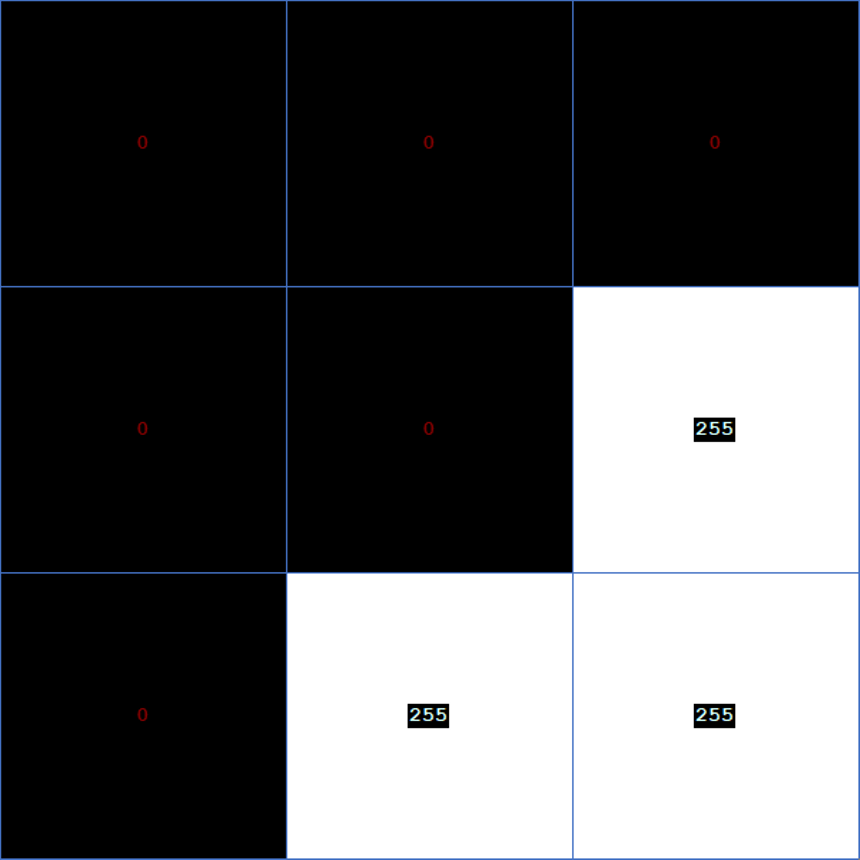

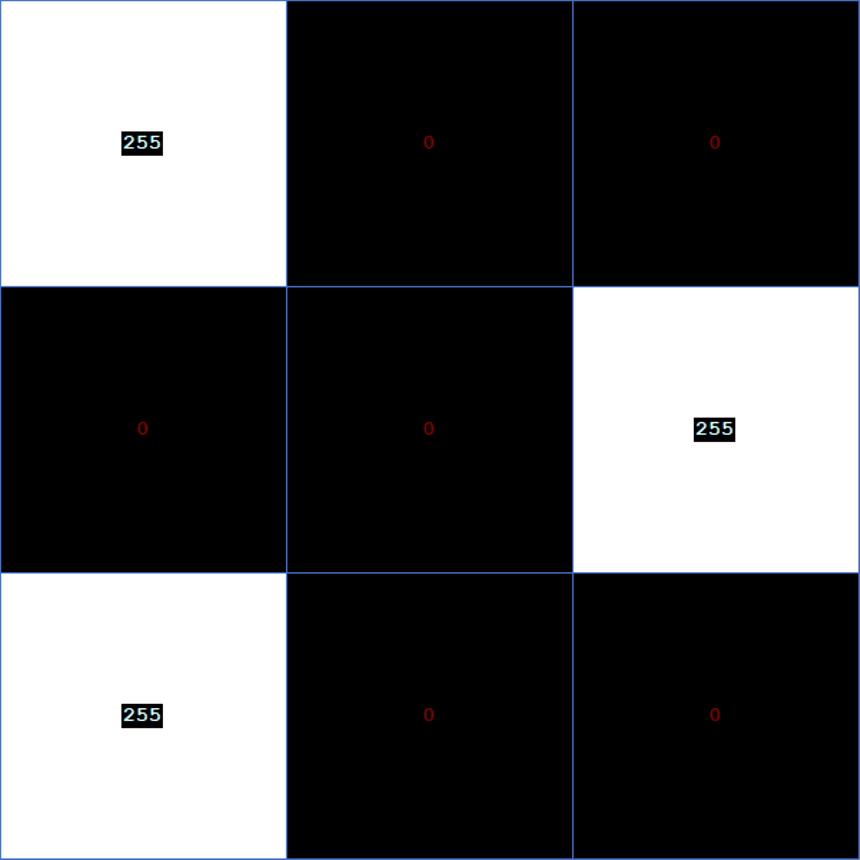

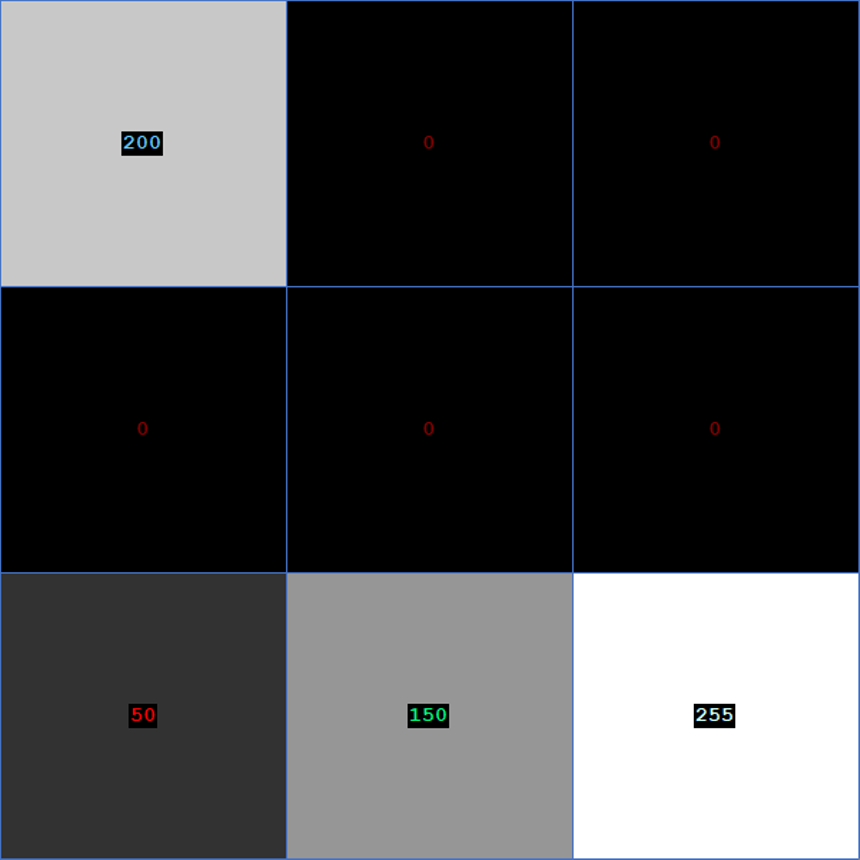

Source Image	Operand Image	Destination Image

Fig. Source, Operand and Destination images of Logical Xor

3 예제 코드

Scalar 연산

COperationLogicalXor LogicalXor;

CFLImage fliSourceImage;
CFLImage fliDestinationImage;
CMultiVar<double> mulVarScalar;

LogicalXor.SetSourceImage(fliSourceImage);
LogicalXor.SetDestinationImage(fliDestinationImage);
LogicalXor.SetOperationSource(EOperationSource_Scalar);
LogicalXor.SetScalarValue(mulVarScalar);

LogicalXor.Execute();

COperationLogicalXor LogicalXor = new COperationLogicalXor();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();
CMultiVar<double> mulVarScalar = new CMultiVar<double>();

LogicalXor.SetSourceImage(ref fliSourceImage);
LogicalXor.SetDestinationImage(ref fliDestinationImage);
LogicalXor.SetOperationSource(EOperationSource.Scalar);
LogicalXor.SetScalarValue(mulVarScalar);

LogicalXor.Execute();

Image 연산

COperationLogicalXor LogicalXor;

CFLImage fliSourceImage;
CFLImage fliOperandImage;
CFLImage fliDestinationImage;

LogicalXor.SetSourceImage(fliSourceImage);
LogicalXor.SetOperandImage(fliOperandImage);
LogicalXor.SetDestinationImage(fliDestinationImage);
LogicalXor.SetOperationSource(EOperationSource_Image);

LogicalXor.Execute();

COperationLogicalXor LogicalXor = new COperationLogicalXor();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliOperandImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

LogicalXor.SetSourceImage(ref fliSourceImage);
LogicalXor.SetOperandImage(ref fliOperandImage);
LogicalXor.SetDestinationImage(ref fliDestinationImage);
LogicalXor.SetOperationSource(EOperationSource.Image);

LogicalXor.Execute();
