Hypotenuse

1 개요

스칼라 또는 이미지와의 Hypotenuse 연산을 수행하는 알고리즘입니다.

2 알고리즘 상세 설명

IDst(x,y)=ISrc(x,y)2+Scalar2I_{Dst}(x,y) = \sqrt{I_{Src}(x,y) ^ 2 + Scalar^2}

IDst(x,y)=ISrc(x,y)2+IOpr(x,y)2I_{Dst}(x,y) = \sqrt{I_{Src}(x,y) ^ 2 + I_{Opr}(x,y) ^ 2}

Source Scalar Value : (15)
Result

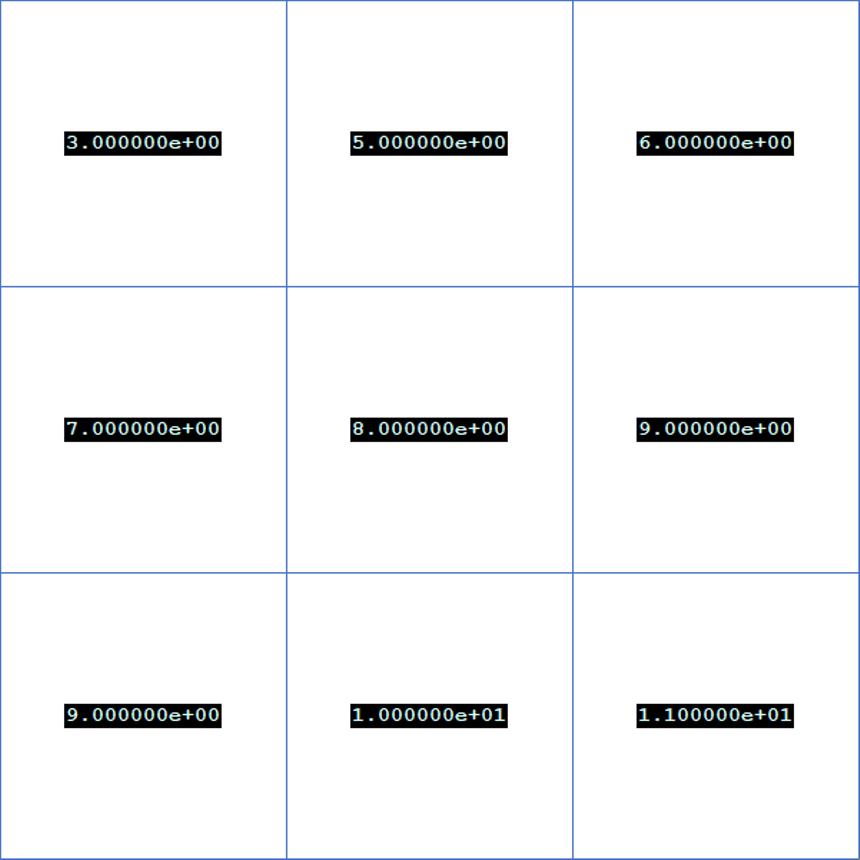

Source Result

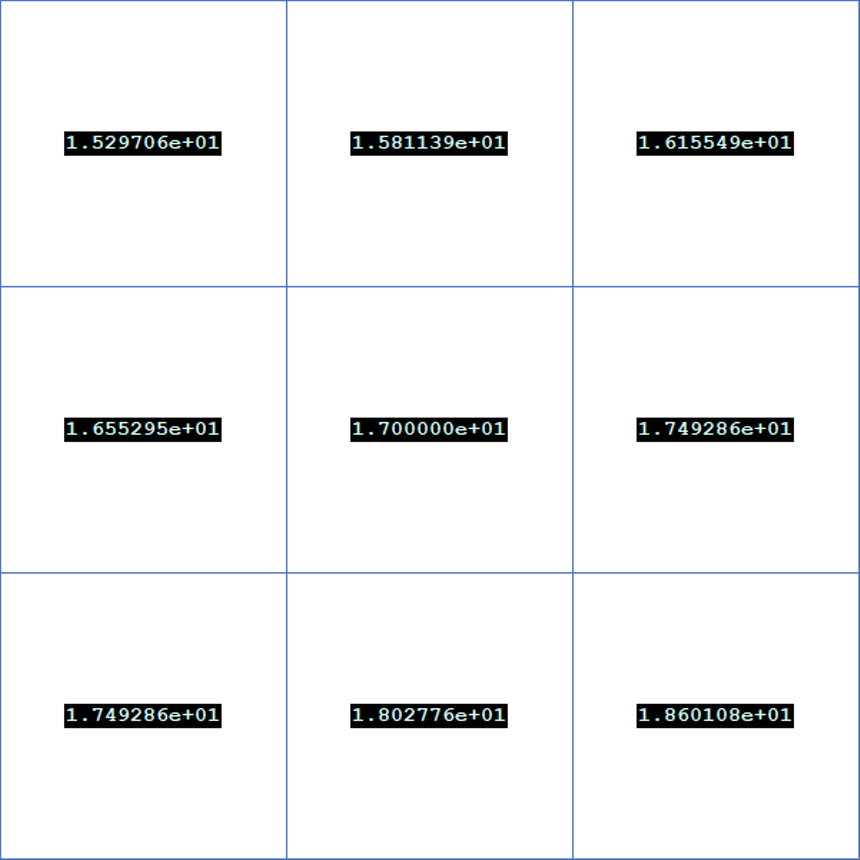

Fig. Scalar 값에 따른 결과 비교

Source
Operand Result

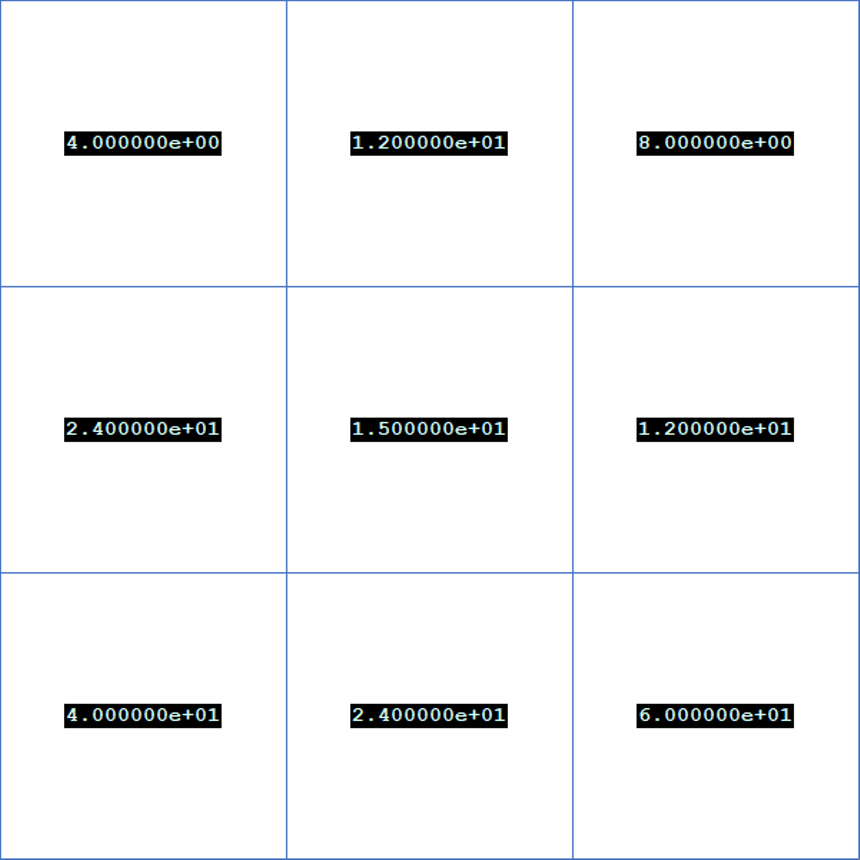

Source Operand Operand result

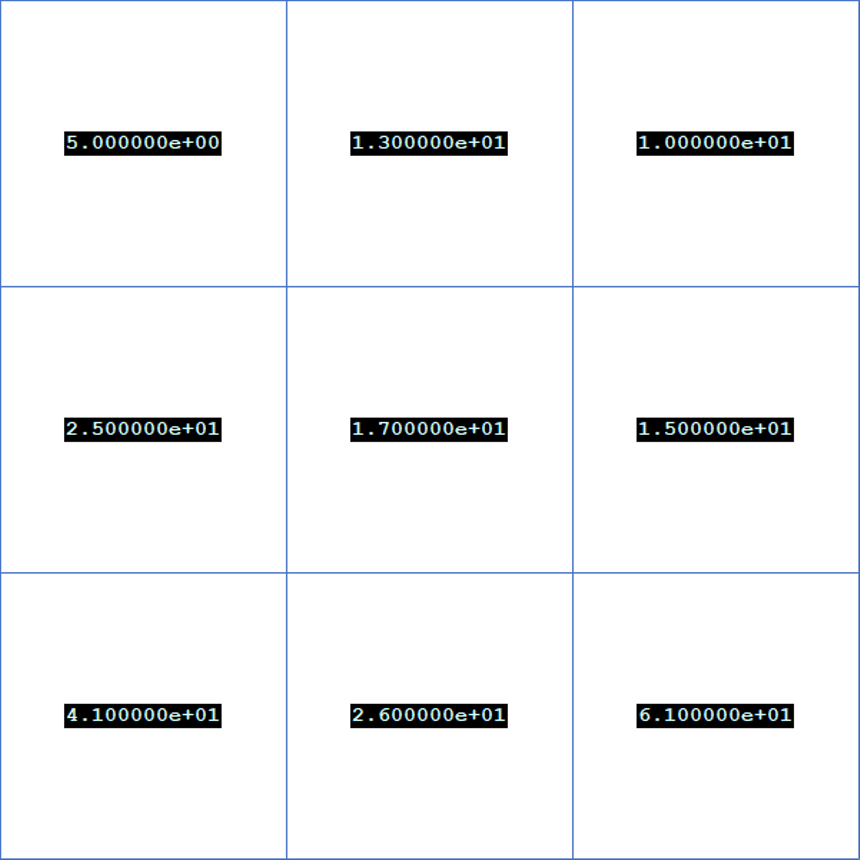

Fig. Image 값에 따른 결과 비교

3 파라미터 설정 및 사용 방법

멤버함수 파라미터 설 명
SetScalarValue CMultiVar<double> mvScalarValue IN Scalar 값을 설정합니다.

Source 픽셀의 각 채널에 대해 Scalar 연산을 수행 할 Scalar 값을 설정합니다.

4 예제 코드

Scalar 연산

COperationHypotenuse operationHypotenuse;

CFLImage fliSourceImage;
CFLImage fliDestinationImage;
CMultiVar<double> mvScalarValue;

operationHypotenuse.SetSourceImage(fliSourceImage);
operationHypotenuse.SetDestinationImage(fliDestinationImage);
operationHypotenuse.SetOperationSource(EOperationSource_Scalar);
operationHypotenuse.SetScalarValue(mvScalarValue);

operationHypotenuse.Execute();

COperationHypotenuse operationHypotenuse = new COperationHypotenuse();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();
CMultiVar<double> mvScalarValue = new CMultiVar<double>();

operationHypotenuse.SetSourceImage(ref fliSourceImage);
operationHypotenuse.SetDestinationImage(ref fliDestinationImage);
operationHypotenuse.SetOperationSource(EOperationSource.Scalar);
operationHypotenuse.SetScalarValue(mvScalarValue);

operationHypotenuse.Execute();

operationHypotenuse = COperationHypotenuse()

fliSourceImage = CFLImage()
fliDestinationImage = CFLImage()
mvScalarValue = CMultiVar[Double]()

operationHypotenuse.SetSourceImage(fliSourceImage)
operationHypotenuse.SetDestinationImage(fliDestinationImage)
operationHypotenuse.SetOperationSource(EOperationSource.Scalar)
operationHypotenuse.SetScalarValue(mvScalarValue)

operationHypotenuse.Execute()

Image 연산

COperationHypotenuse operationHypotenuse;

CFLImage fliSourceImage;
CFLImage fliOperandImage;
CFLImage fliDestinationImage;

operationHypotenuse.SetSourceImage(fliSourceImage);
operationHypotenuse.SetOperandImage(fliOperandImage);
operationHypotenuse.SetDestinationImage(fliDestinationImage);
operationHypotenuse.SetOperationSource(EOperationSource_Image);

operationHypotenuse.Execute();

COperationHypotenuse operationHypotenuse = new COperationHypotenuse();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliOperandImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

operationHypotenuse.SetSourceImage(ref fliSourceImage);
operationHypotenuse.SetOperandImage(ref fliOperandImage);
operationHypotenuse.SetDestinationImage(ref fliDestinationImage);
operationHypotenuse.SetOperationSource(EOperationSource.Image);

operationHypotenuse.Execute();

operationHypotenuse = COperationHypotenuse()

fliSourceImage = CFLImage()
fliOperandImage = CFLImage()
fliDestinationImage = CFLImage()

operationHypotenuse.SetSourceImage(fliSourceImage)
operationHypotenuse.SetOperandImage(fliOperandImage)
operationHypotenuse.SetDestinationImage(fliDestinationImage)
operationHypotenuse.SetOperationSource(EOperationSource.Image)

operationHypotenuse.Execute()
