Bitwise Xor

1 개요

이미지를 스칼라 또는 다른 이미지와 Bitwise Xor 연산을 수행하는 알고리즘입니다.

2 알고리즘 상세 설명

이미지를 스칼라 또는 다른 이미지와 각 Channel 마다 Bitwise Xor 연산을 수행합니다.

Source Image Operand Image Destination Image
Source Image Operation Image Destination Image

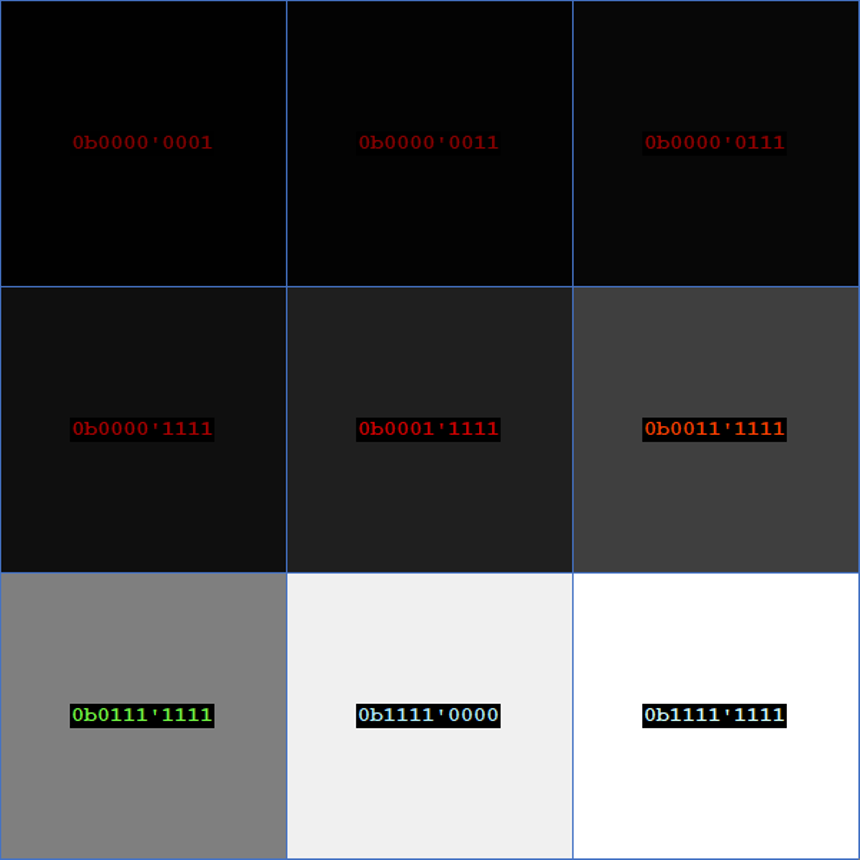

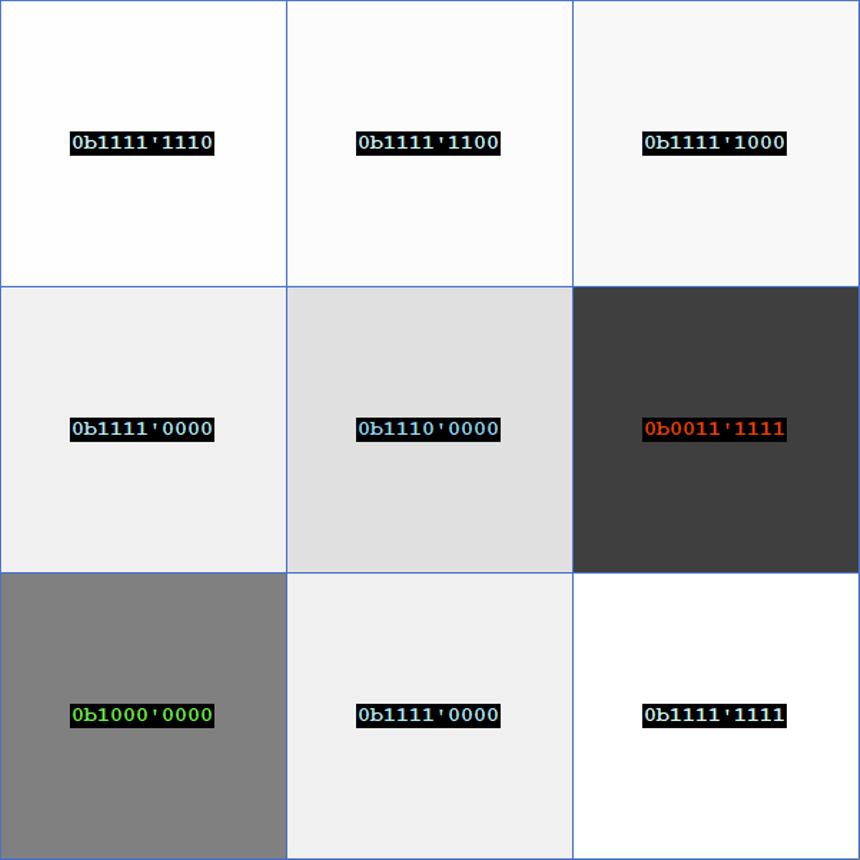

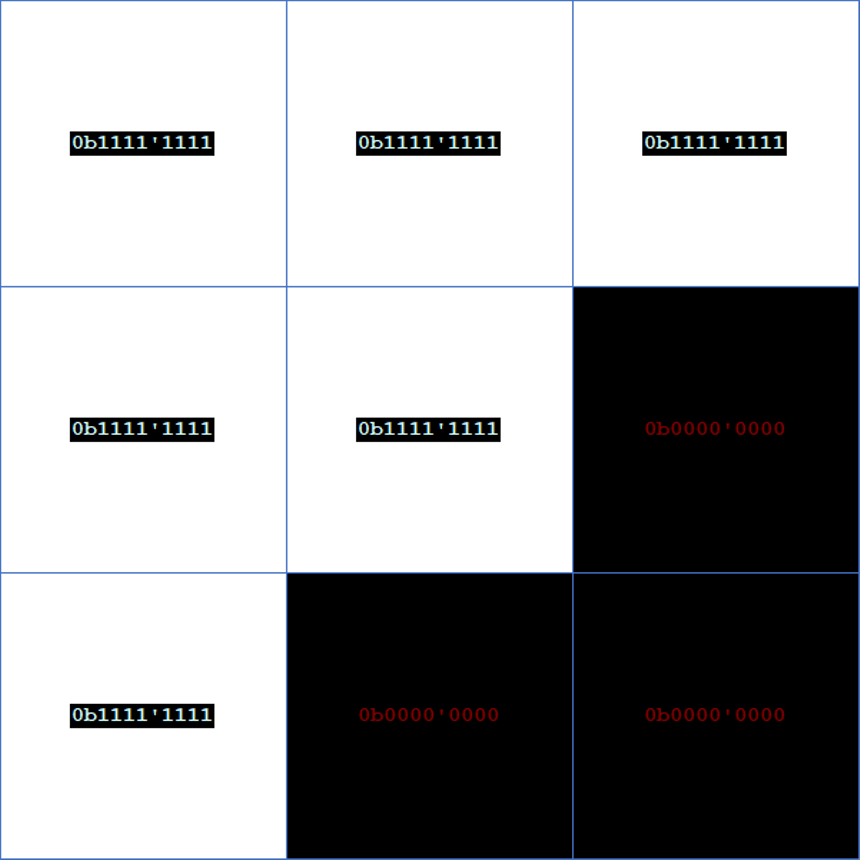

Fig. Source, Operand and Destination images of Bitwise Xor

3 예제 코드

Scalar 연산

COperationBitwiseXor BitwiseXor;

CFLImage fliSourceImage;
CFLImage fliDestinationImage;
CMultiVar<double> mulVarScalar;

BitwiseXor.SetSourceImage(fliSourceImage);
BitwiseXor.SetDestinationImage(fliDestinationImage);
BitwiseXor.SetOperationSource(EOperationSource_Scalar);
BitwiseXor.SetScalarValue(mulVarScalar);

BitwiseXor.Execute();

COperationBitwiseXor BitwiseXor = new COperationBitwiseXor();
CFLImage fliSourceImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

CMultiVar<double> mulVarScalar = new CMultivar<double>();

BitwiseXor.SetSourceImage(ref fliSourceImage);
BitwiseXor.SetDestinationImage(ref fliDestinationImage);
BitwiseXor.SetOperationSource(EOperationSource.Scalar);
BitwiseXor.SetScalarValue(mulVarScalar);
BitwiseXor.Execute();

BitwiseXor = COperationBitwiseXor()
fliSourceImage = CFLImage()
fliDestinationImage = CFLImage()

mulVarScalar = CMultivar[Double]()

BitwiseXor.SetSourceImage(fliSourceImage)
BitwiseXor.SetDestinationImage(fliDestinationImage)
BitwiseXor.SetOperationSource(EOperationSource.Scalar)
BitwiseXor.SetScalarValue(mulVarScalar)
BitwiseXor.Execute()

Image 연산

COperationBitwiseXor BitwiseXor;

CFLImage fliSourceImage;
CFLImage fliOperandImage;
CFLImage fliDestinationImage;

BitwiseXor.SetSourceImage(fliSourceImage);
BitwiseXor.SetOperandImage(fliOperandImage);
BitwiseXor.SetDestinationImage(fliDestinationImage);
BitwiseXor.SetOperationSource(EOperationSource_Image);

BitwiseXor.Execute();

COperationBitwiseXor BitwiseXor = new COperationBitwiseXor();
CFLImage fliSourceImage = new CFLImage();
CFLImage fliOperandImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

BitwiseXor.SetSourceImage(ref fliSourceImage);
BitwiseXor.SetOperandImage(ref fliOperandImage);
BitwiseXor.SetDestinationImage(ref fliDestinationImage);
BitwiseXor.Execute();

BitwiseXor = COperationBitwiseXor()
fliSourceImage = CFLImage()
fliOperandImage = CFLImage()
fliDestinationImage = CFLImage()

BitwiseXor.SetSourceImage(fliSourceImage)
BitwiseXor.SetOperandImage(fliOperandImage)
BitwiseXor.SetDestinationImage(fliDestinationImage)
BitwiseXor.Execute()
