Bitwise Nor

1 개요

이미지를 스칼라 또는 다른 이미지와 Bitwise Nor 연산을 수행하는 알고리즘입니다.

2 알고리즘 상세 설명

이미지를 스칼라 또는 다른 이미지와 각 Channel 마다 Bitwise Nor 연산을 수행합니다.

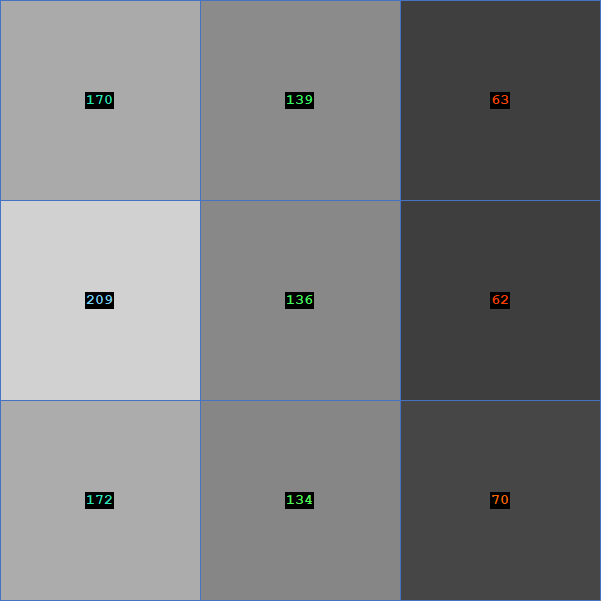

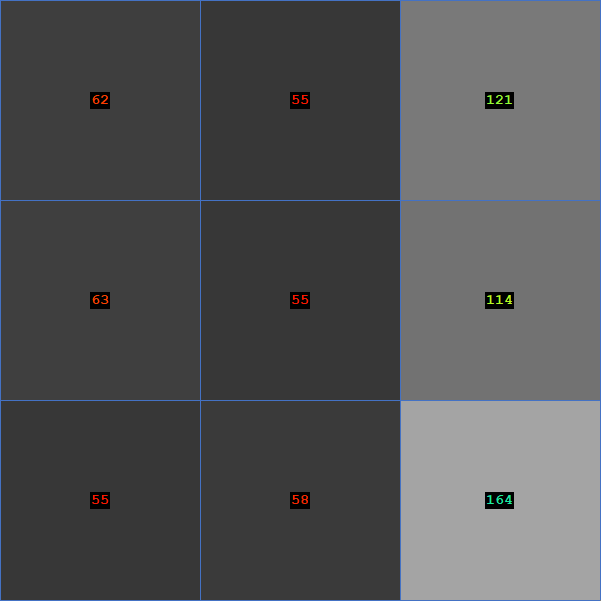

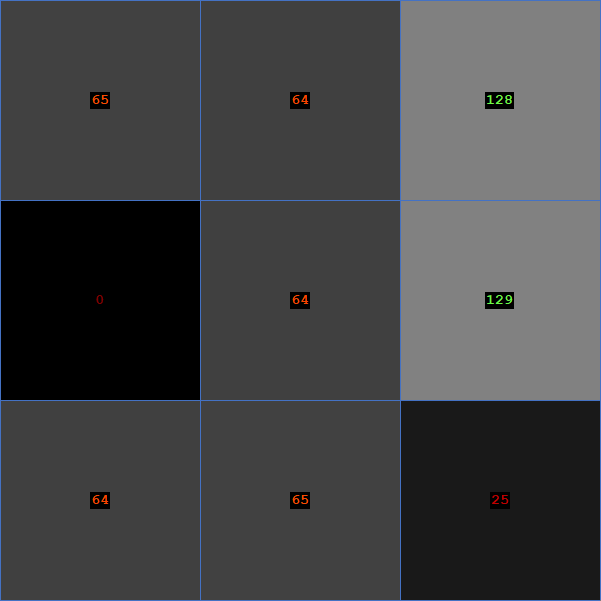

Source Image Operand Image Destination Image
Source Image Operation Image Destination Image
Fig. Source, Operand and Destination images of Bitwise Nor

3 예제 코드

Scalar 연산

COperationBitwiseNor operationBitwiseNor;

CFLImage fliSourceImage;
CFLImage fliDestinationImage;
CMultiVar<double> mulVarScalar;

operationBitwiseNor.SetSourceImage(fliSourceImage);
operationBitwiseNor.SetDestinationImage(fliDestinationImage);
operationBitwiseNor.SetOperationSource(EOperationSource_Scalar);
operationBitwiseNor.SetScalarValue(mulVarScalar);

operationBitwiseNor.Execute();

COperationBitwiseNor operationBitwiseNor = new COperationBitwiseNor();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();
CMultiVar<double> mulVarScalar = new CMultiVar<double>();

operationBitwiseNor.SetSourceImage(ref fliSourceImage);
operationBitwiseNor.SetDestinationImage(ref fliDestinationImage);
operationBitwiseNor.SetOperationSource(EOperationSource.Scalar);
operationBitwiseNor.SetScalarValue(mulVarScalar);

operationBitwiseNor.Execute();

operationBitwiseNor = COperationBitwiseNor()

fliSourceImage = CFLImage()
fliDestinationImage = CFLImage()
mulVarScalar = CMultiVar[Double]()

operationBitwiseNor.SetSourceImage(fliSourceImage)
operationBitwiseNor.SetDestinationImage(fliDestinationImage)
operationBitwiseNor.SetOperationSource(EOperationSource.Scalar)
operationBitwiseNor.SetScalarValue(mulVarScalar)

operationBitwiseNor.Execute()

Image 연산

COperationBitwiseNor operationBitwiseNor;

CFLImage fliSourceImage;
CFLImage fliOperandImage;
CFLImage fliDestinationImage;

operationBitwiseNor.SetSourceImage(fliSourceImage);
operationBitwiseNor.SetOperandImage(fliOperandImage);
operationBitwiseNor.SetDestinationImage(fliDestinationImage);
operationBitwiseNor.SetOperationSource(EOperationSource_Image);

operationBitwiseNor.Execute();

COperationBitwiseNor operationBitwiseNor = new COperationBitwiseNor();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliOperandImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

operationBitwiseNor.SetSourceImage(ref fliSourceImage);
operationBitwiseNor.SetOperandImage(ref fliOperandImage);
operationBitwiseNor.SetDestinationImage(ref fliDestinationImage);
operationBitwiseNor.SetOperationSource(EOperationSource.Image);

operationBitwiseNor.Execute();

operationBitwiseNor = COperationBitwiseNor()

fliSourceImage = CFLImage()
fliOperandImage = CFLImage()
fliDestinationImage = CFLImage()

operationBitwiseNor.SetSourceImage(fliSourceImage)
operationBitwiseNor.SetOperandImage(fliOperandImage)
operationBitwiseNor.SetDestinationImage(fliDestinationImage)
operationBitwiseNor.SetOperationSource(EOperationSource.Image)

operationBitwiseNor.Execute()
