Atan2

1 개요

이미지를 스칼라 또는 다른 이미지와 Atan2 연산을 수행하는 알고리즘입니다.

2 알고리즘 상세 설명

이미지를 스칼라 또는 다른 이미지와 각 Channel 마다 Atan2 연산을 수행합니다.

Source Value Operand Value Destination Value
Source Image Operation Image Destination Image

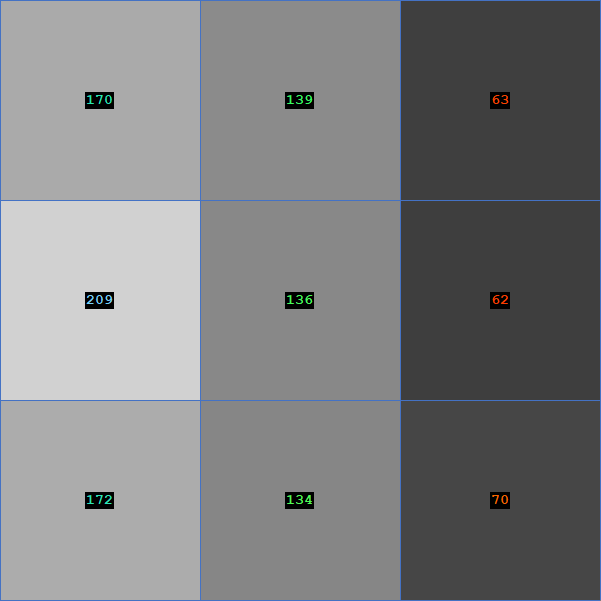

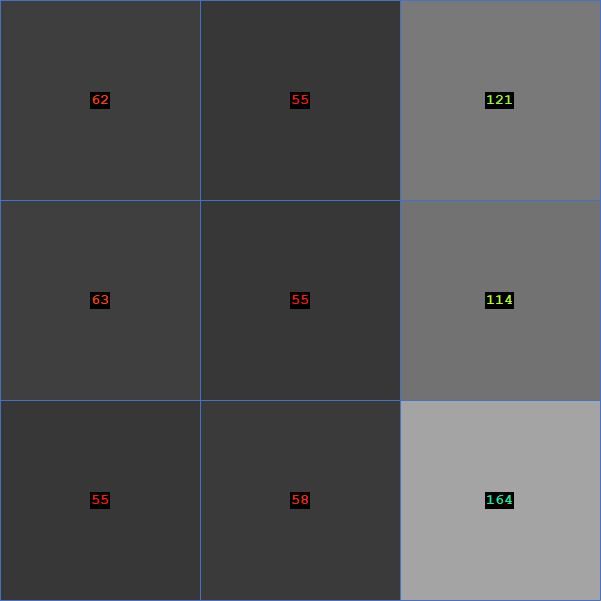

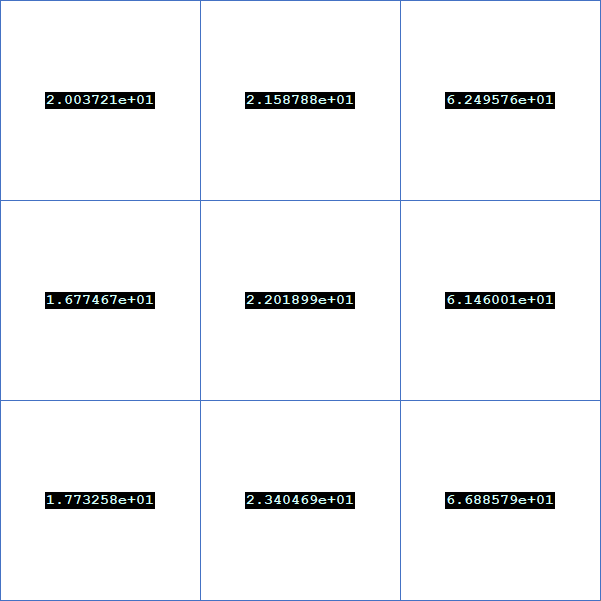

Fig. Source, Operand and Destination values of Atan2

3 예제 코드

Scalar 연산

COperationAtan2 operationAtan2;

CFLImage fliSourceImage;
CFLImage fliDestinationImage;
CMultiVar<double> mulVarScalar;

operationAtan2.SetSourceImage(fliSourceImage);
operationAtan2.SetDestinationImage(fliDestinationImage);
operationAtan2.SetOperationSource(EOperationSource_Scalar);
operationAtan2.SetScalarValue(mulVarScalar);

operationAtan2.Execute();

COperationAtan2 operationAtan2 = new COperationAtan2();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();
CMultiVar<double> mulVarScalar = new CMultiVar<double>();

operationAtan2.SetSourceImage(ref fliSourceImage);
operationAtan2.SetDestinationImage(ref fliDestinationImage);
operationAtan2.SetOperationSource(EOperationSource.Scalar);
operationAtan2.SetScalarValue(mulVarScalar);

operationAtan2.Execute();

operationAtan2 = COperationAtan2()

fliSourceImage = CFLImage()
fliDestinationImage = CFLImage()
mulVarScalar = CMultiVar[Double]()

operationAtan2.SetSourceImage(fliSourceImage)
operationAtan2.SetDestinationImage(fliDestinationImage)
operationAtan2.SetOperationSource(EOperationSource.Scalar)
operationAtan2.SetScalarValue(mulVarScalar)

operationAtan2.Execute()

Image 연산

COperationAtan2 operationAtan2;

CFLImage fliSourceImage;
CFLImage fliOperandImage;
CFLImage fliDestinationImage;

operationAtan2.SetSourceImage(fliSourceImage);
operationAtan2.SetOperandImage(fliOperandImage);
operationAtan2.SetDestinationImage(fliDestinationImage);
operationAtan2.SetOperationSource(EOperationSource_Image);

operationAtan2.Execute();

COperationAtan2 operationAtan2 = new COperationAtan2();

CFLImage fliSourceImage = new CFLImage();
CFLImage fliOperandImage = new CFLImage();
CFLImage fliDestinationImage = new CFLImage();

operationAtan2.SetSourceImage(ref fliSourceImage);
operationAtan2.SetOperandImage(ref fliOperandImage);
operationAtan2.SetDestinationImage(ref fliDestinationImage);
operationAtan2.SetOperationSource(EOperationSource.Image);

operationAtan2.Execute();

operationAtan2 = COperationAtan2()

fliSourceImage = CFLImage()
fliOperandImage = CFLImage()
fliDestinationImage = CFLImage()

operationAtan2.SetSourceImage(fliSourceImage)
operationAtan2.SetOperandImage(fliOperandImage)
operationAtan2.SetDestinationImage(fliDestinationImage)
operationAtan2.SetOperationSource(EOperationSource.Image)

operationAtan2.Execute()
