Reduce Dimension Mean 2D to 1D

1 개요

원본 이미지 차원을 축소하는 알고리즘입니다. 축소된 차원의 평균값을 결과로 출력합니다.

2 알고리즘 상세 설명

I_{Dst}(x, 0) = {\sum_{y=0}^{Height - 1} \frac{I_{Src}(x, y)}{Height}}

I_{Dst}(0, y) = {\sum_{x=0}^{Width - 1} \frac{I_{Src}(x, y)}{Width}}

$I_{Dst}(x,y)$ : 결과 이미지의 (x,y)위치 픽셀값
$I_{Src}(x, y)$ : 원본 이미지의 (x,y)위치 픽셀값

이미지의 x 또는 y 차원을 평균값을 기반으로 축소시킵니다.

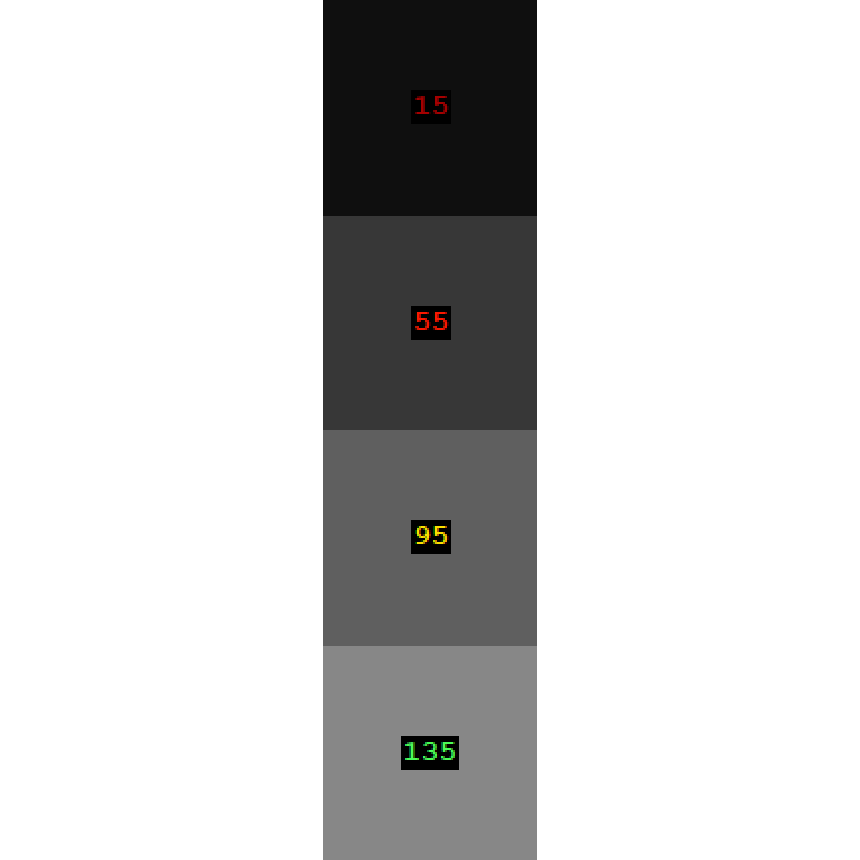

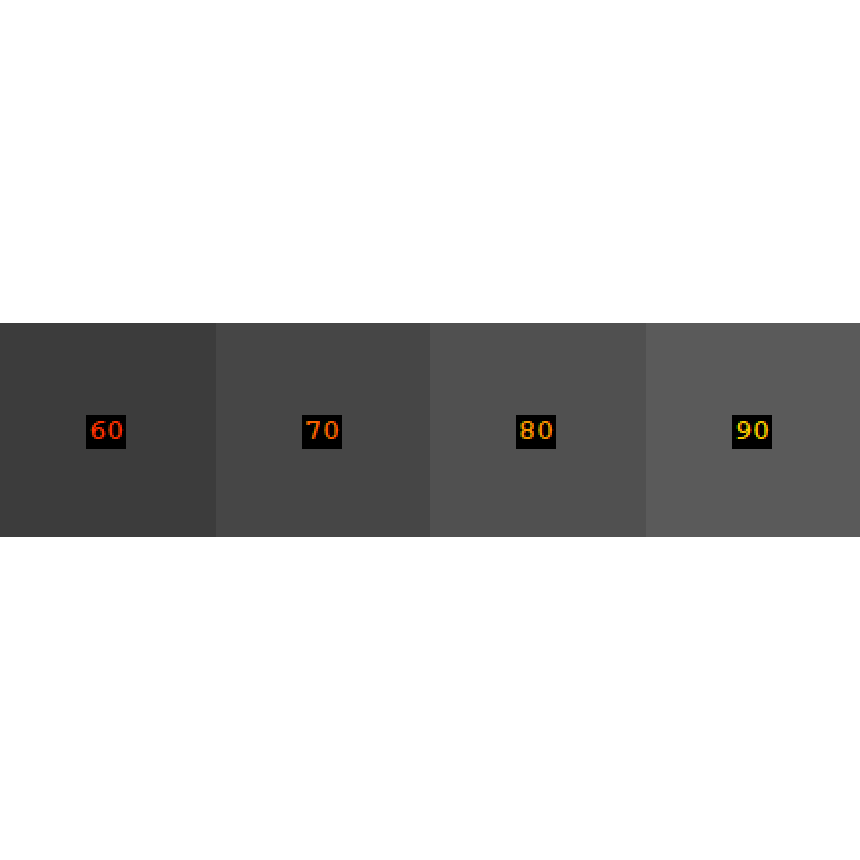

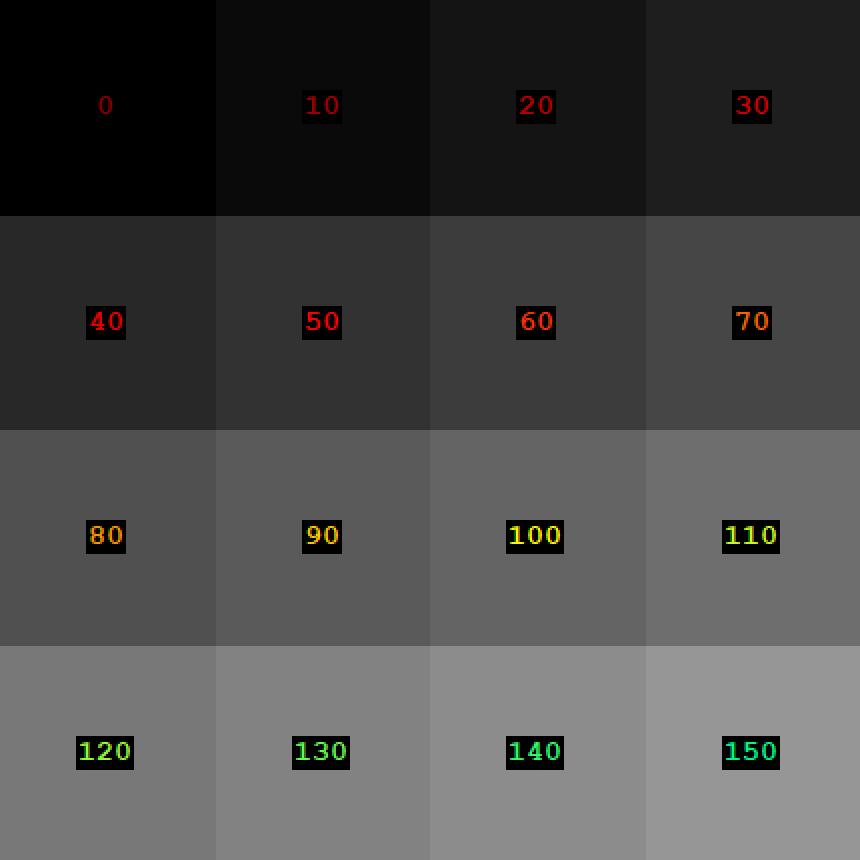

Source Image	Reduce X Dimension Destination Image	Reduce Y Dimension Destination Image

Fig. Reduce Dimension Mean 2D to 1D 동작 예시

3 파라미터 설정 및 사용 방법

멤버함수	파라미터			설 명
SetReductionDimension	CReduceDimensionMean2Dto1D::EReductionDimension	eReductionDimension	IN	축소 차원을 설정합니다.

4 예제

CFLImage fliSourceImage;
CFLImage fliDestinationImage;

CReduceDimensionMean2Dto1D reduceDimensionMean2Dto1D;
reduceDimensionMean2Dto1D.SetSourceImage(fliSourceImage);
reduceDimensionMean2Dto1D.SetDestinationImage(fliDestinationImage);

// x 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D::EReduceDimension_X);
reduceDimensionMean2Dto1D.Execute();

// y 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D::EReduceDimension_Y);
reduceDimensionMean2Dto1D.Execute();

CReduceDimensionMean2Dto1D reduceDimensionMean2Dto1D = new CReduceDimensionMean2Dto1D();

CFLImage fliSourceImage = new CFLImage();
reduceDimensionMean2Dto1D.SetSourceImage(ref fliSourceImage);

CFLImage fliDestinationImage = new CFLImage();
reduceDimensionMean2Dto1D.SetDestinationImage(ref fliDestinationImage);

// x 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D.EReduceDimension.X);
reduceDimensionMean2Dto1D.Execute();

// y 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D.EReduceDimension.Y);
reduceDimensionMean2Dto1D.Execute();

reduceDimensionMean2Dto1D = CReduceDimensionMean2Dto1D()

fliSourceImage = CFLImage()
reduceDimensionMean2Dto1D.SetSourceImage(fliSourceImage)

fliDestinationImage = CFLImage()
reduceDimensionMean2Dto1D.SetDestinationImage(fliDestinationImage)

# x 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D.EReduceDimension.X)
reduceDimensionMean2Dto1D.Execute()

# y 차원 축소
reduceDimensionMean2Dto1D.SetReduceDimension(CReduceDimensionMean2Dto1D.EReduceDimension.Y)
reduceDimensionMean2Dto1D.Execute()
