Channel Removal

1 개요

다채널 이미지에서 특정 채널을 제거하는 알고리즘입니다.

2 알고리즘 상세 설명

NN 채널 이미지에서 특정 채널을 제거한 이미지를 출력합니다.

Source Image Remove Channel 0 Image Remove Channel 1, 2 Image
Source Image Destination Image Destination Image

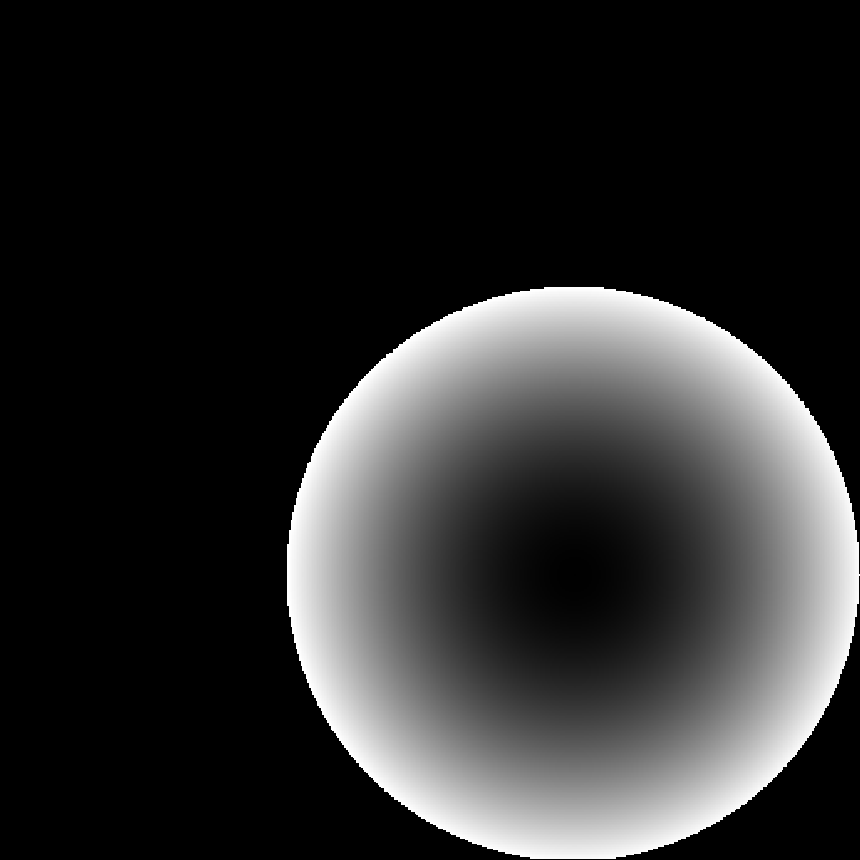

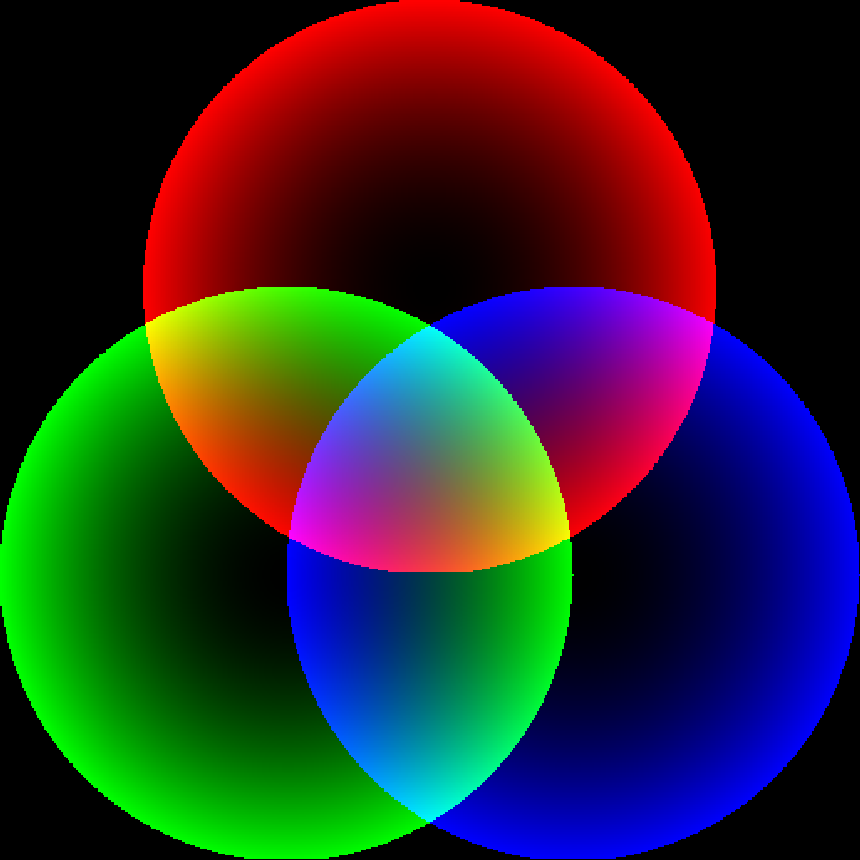

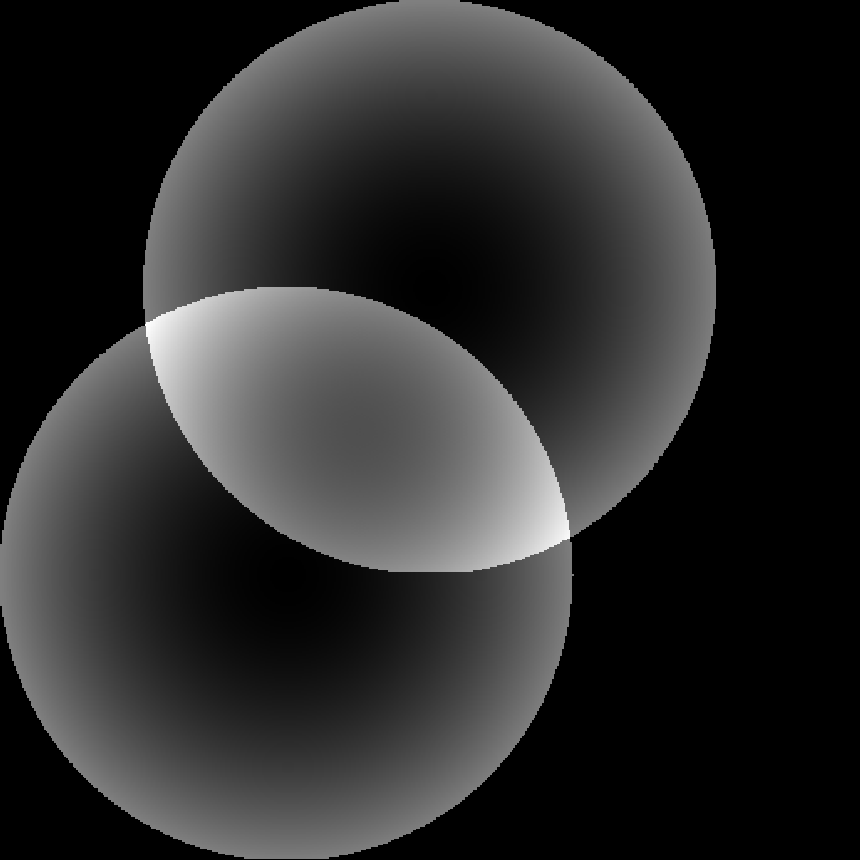

Fig. Channel Removal 동작 예시

3 파라미터 설정 및 사용 방법

멤버함수 파라미터 설 명
SetRemovalChannels EChannelSelection eRemovalChannels IN 삭제할 채널을 설정합니다.

4 예제

CFLImage fliSourceImage;
CFLImage fliDestinationImage;

CChannelRemoval channelRemoval;
channelRemoval.SetSourceImage(fliSourceImage);
channelRemoval.SetDestinationImage(fliDestinationImage);

channelRemoval.SetRemovalChannels(EChannelSelection_Channel_0);

channelRemoval.Execute();

CChannelRemoval channelRemoval = new CChannelRemoval();

CFLImage fliSourceImage = new CFLImage();
channelRemoval.SetSourceImage(ref fliSourceImage);

CFLImage fliDestinationImage = new CFLImage();
channelRemoval.SetDestinationImage(ref fliDestinationImage);

channelRemoval.SetRemovalChannels(EChannelSelection.Channel_0);

channelRemoval.Execute();
